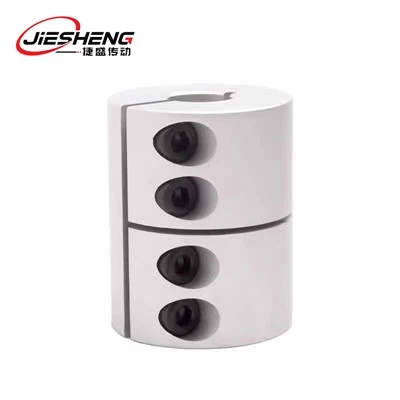

Cov ntaub ntawv khoom lag luam
Stepper tsav ncej txuas yog ib hom kev sib tw ua ke, muaj cov qauv kev ua kom zoo, thiab muaj kev kub ntxhov, thiab yog siv dav hlau, thiab yog siv dav dav thiab muaj kev kub ntxhov, thiab yog siv dav hlau, thiab yog siv tau ntau yam, thiab yog siv dav hlau, thiab yog siv tau ntau yam, thiab yog siv dav hlau, thiab yog siv tau ntau yam, thiab yog siv tau ntau yam, thiab yog siv nyob rau hauv cov teb ntawm lawv Tau siv dav hauv cov khoom lag luam (piv txwv li cov twj tso kua roj, compressors, kiv cua, cov tshuab hluav taws xob, cov tshuab thauj khoom thiab tshuab hluav taws xob.
Cov yam ntxwv tseem ceeb
Siab elasticity
Cov hlau diaphragm tuaj yeem nqus tau cov kev co thiab poob siab, txo cov khoom hnav.
01
Them nyiaj ntawm kev sib txawv
Nws tuaj yeem them taus axial, radial thiab egular sib txawv, txo qhov yuav tsum tau ntawm kev teeb tsa raug.
02
Tsis muaj lubrication
Tsis tas lubricurration yuav tsum tau, txo cov nqi kho.
03
Siab Torque Kis
Kev cog lus kev cog lus, muaj peev xwm hloov pauv loj torque.
04
Lub neej ntev
Hlau Diaphragm yog foob-resistant thiab muaj lub neej service ntev.
05
Cov lus qhia tshwj xeeb
|
Tus qauv |
D (hli) |
L (hli) |
d1 Min Bore |
d2 Max Bore |
Mounting Screws (M) |
L1 |
L2 |
L3 |
L4 |
Ntsia Hlau Zawm Torque Force (N.m) |
|
Ld 1- b-d20l20 (ib leeg diaphragm) |
20 |
20 |
3 |
8 |
M3 |
9 |
2 |
4 |
/ |
2.1 |
|
Ld 1- b-d26l26 (ib leeg diaphragm) |
26 |
26 |
4 |
12 |
M3 |
11.8 |
2.4 |
4.1 |
/ |
2.1 |
|
LDF 1- b-d26l26 (ib leeg diaphragm) |
26 |
26 |
6 |
14 |
M3 |
11.8 |
2.4 |
4.1 |
/ |
2.1 |
|
Ld {1- b-d32l28 (ib leeg diaphragm) |
32 |
28 |
5 |
16 |
M3 |
12.4 |
3.2 |
4 |
/ |
2.1 |
|
LD 1- b-d34l33 (ib leeg diaphragm) |
34 |
33 |
5 |
16 |
M4 |
14.9 |
3.2 |
5.2 |
/ |
4.9 |
|
Ld 1- b-d34l38 (ib leeg diaphragm) |
34 |
38 |
5 |
16 |
M4 |
17.4 |
3.2 |
5.4 |
/ |
4.9 |
|
Ld 1- b-d40l35 (ib leeg diaphragm) |
40 |
35 |
6 |
19 |
M4 |
15.5 |
4 |
5 |
/ |
4.9 |
|
Ld 1- b-d45l35 (ib leeg diaphragm) |
45 |
35 |
8 |
22 |
M4 |
15.5 |
4 |
5 |
/ |
4.9 |
|
Ld 1- b-d50l44 (ib leeg diaphragm) |
50 |
44 |
10 |
22 |
M4 |
20 |
4 |
6.8 |
/ |
4.9 |
|
Ld 1- b-d56L45 (tib lub diaphragm) |
56 |
45 |
12 |
32 |
M5 |
20 |
5 |
6 |
/ |
10 |
|
Ld 1- b-d68l54 (ib leeg diaphragm) |
68 |
54 |
14 |
35 |
M6 |
24.5 |
5 |
8 |
/ |
17 |
|
Ld 1- b-d82l68 (ib leeg diaphragm) |
82 |
68 |
16 |
42 |
M8 |
30.8 |
6.5 |
10.8 |
/ |
44 |
